$27.99
Free Shipping
Easy Returns
Lowest Price
100% BRAND NEW
In a Burner fuel, evaporating from vaporizing laying, mixes up with the given air. In the combustion chamber fuel-air mix burns down, heating thereby the heat exchanger. We would advise replacing the gasket set when installing a new Burner Assy.
SUITABLE FOR:
Webasto Air top 2000 ST - diesel
Webasto Air top 2000 STC - diesel

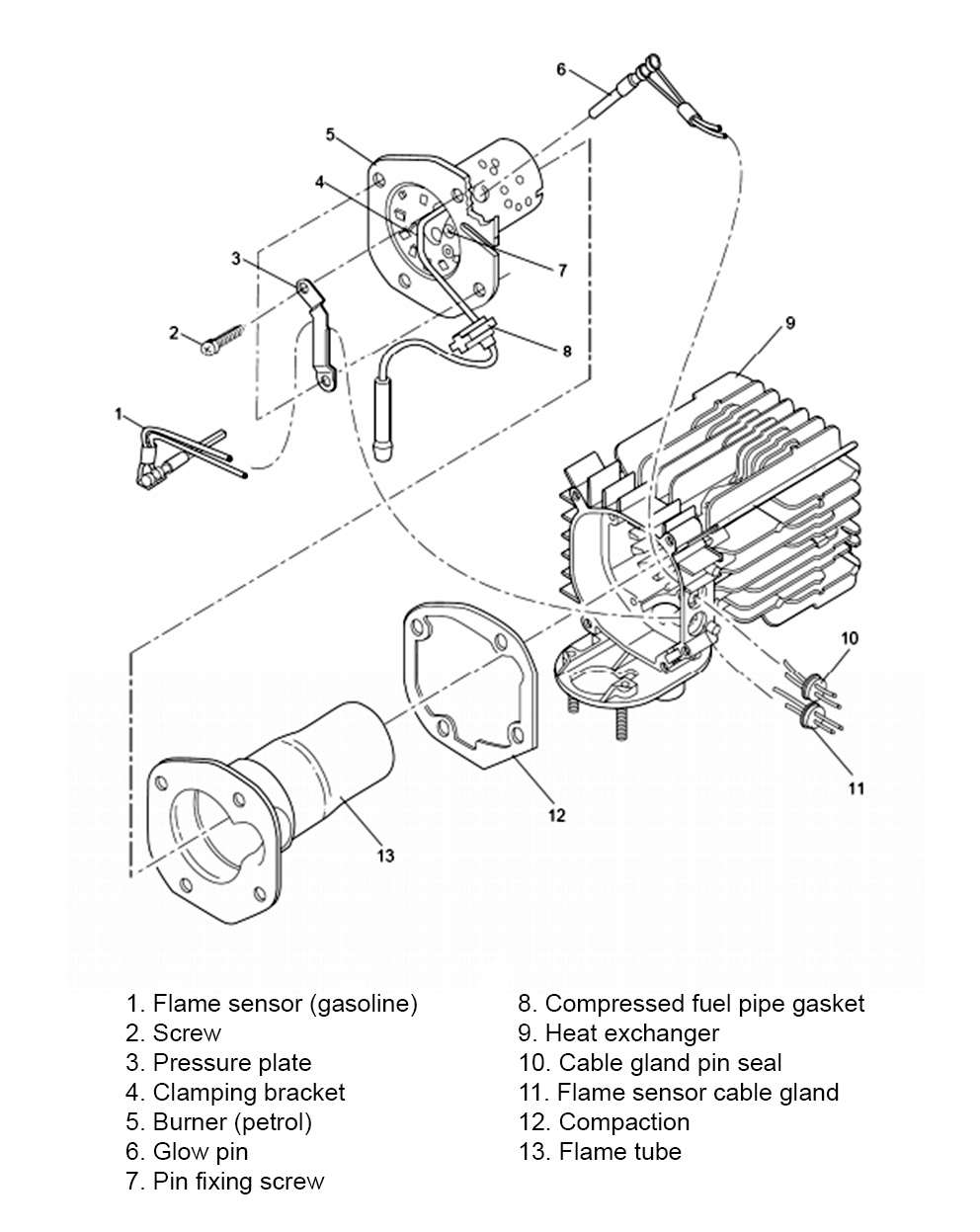

Dismantling:
1.Remove the heater.
2.Disassemble the case.
3.Remove the control unit.
4.Remove the overheating sensor.
5.Remove the air motor.
6.Remove the flame sensor on the petrol version.
7.Remove a glow pin.
ATTENTION! When carrying out the following works be convinced that the fuel tube isn't deformed.
8.Remove a plate.
9.Pull out a spherical pipe and consolidation from the heat exchanger. Consolidation is subject to replacement.
10.Carry out works on the removed components.
Installation:
1.Install new consolidation in the heat exchanger and to bring a spherical pipe into adjusting situation.
2.Establish a glow pin.
ATTENTION! During the following works to pay attention to integrity of a fuel tube.
3.Install a torch in the heat exchanger. The cable of the sensor of a flame has to pass under a fuel tube.
4.3 to fix a Burner and a clamping level by screws.
5.Tighten screws with the moment 6±0,6 nanometers.
6.Establish the air motor.
7.Install the control unit.
8.Install the overheating sensor.
9.Establish the heat-insulating pro-rates.
10.Assemble the case.
11.Install the heater.
Specification:
Power: 2000W
Voltage:12 24V
Compatible With: Fit for Webasto Air Top 2000 / 2000S/ 2000ST heaters
This Is Aftermarket Replacement Item But Not Genuine,According to the original factory specifications. Perfect match for the original equipment.
Made of quality material, stable and reliable
Easy to install
Stable characteristics, high reliability.
Color:Silver
Material: Metal
Size: approx.8.4x7.9x6cm(3.31x3.11x2.36inch)(LxWxH)
Package Contents:
1 * Heaters Burner
Only the above package content, other products are not included.
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
